BDT23-PLUS

Compact in size yet powerful in adaptability, the Baode mini loader delivers exceptional maneuverability in confined spaces—from interior renovations and high-rise upgrades to tunnel construction.

Availability:

Quantity:



Inquire Add to Basket

Product Description

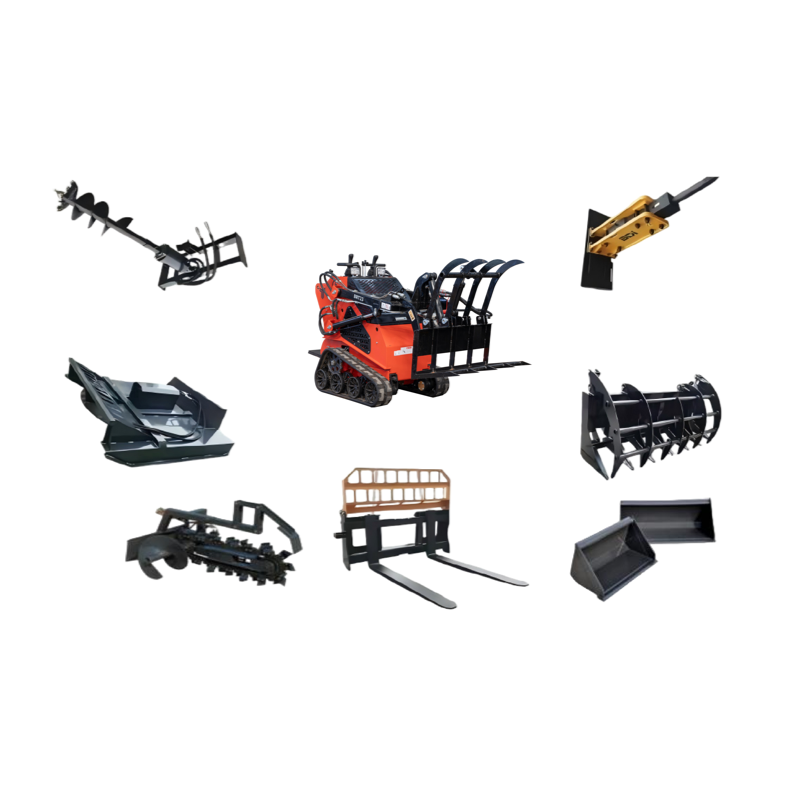

Compact in size yet powerful in adaptability, the Baode mini loader delivers exceptional maneuverability in confined spaces—from interior renovations and high-rise upgrades to tunnel construction. Unlike bulky equipment, its agile operation excels in tight spaces, effortlessly overcoming spatial constraints. Featuring over a hundred attachments including forks, wood grippers, buckets, screw drills, soil looseners, and graders, this workhorse handles everything from crushing operations and site cleaning to road milling, material handling, and cargo transportation. It meets nearly all core needs of small-scale construction projects with one-stop efficiency.

Model	Technical Specification	Configuration
BDT23-PLUS	Maximum working height:2190mm Maximum loading height:1955mm Maximum unloading height:1390mm Maximum dumping distance:600mm Maximum unloading angle:40° Total height:1415mm Ground clearance:125mm Overall length without bucket:1685mm Overall width:1045mm Bucket width:1100mm Overall length with bucket:2340mm Overall length without bucket (folded pedal):1685mm Overall Mass:740kgs Rated load capacity 320kgs Overall Mass:850kgs(with counterweight) Rated load capacity 450kgs(with counterweight)	Thickened steel plate Thickened track Three pumps, unique improved and enhanced internal system RATO 740 engine 23HP, EPA Increased flow rate, long-duration working system Optional counterweight

BDT23-PLUS
